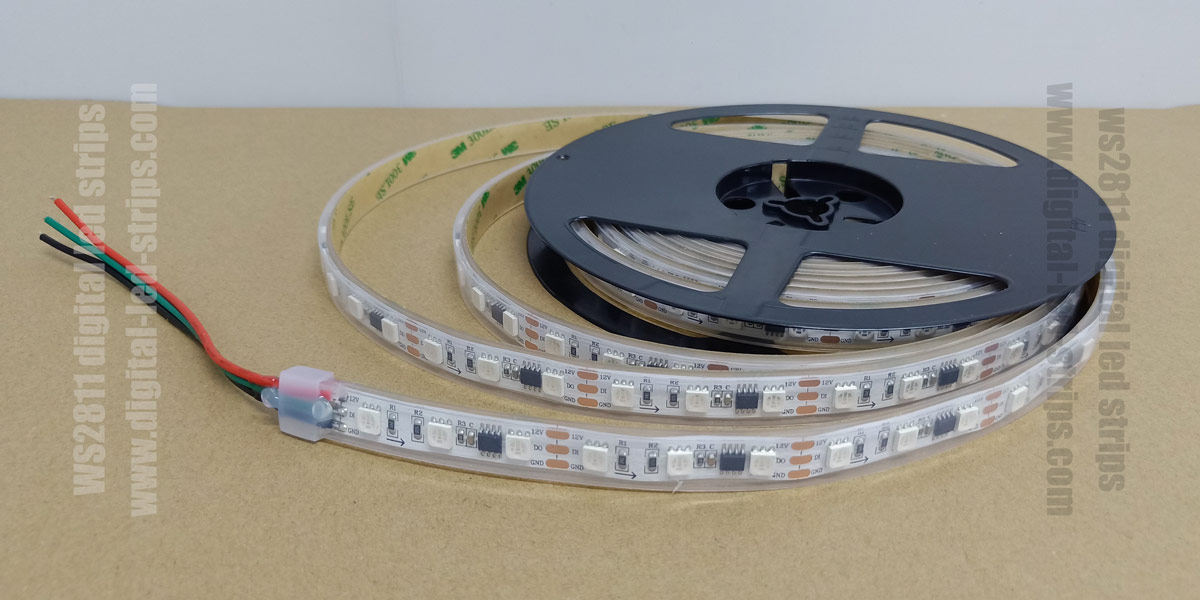

60LED WS2811 Addressable led strips

Overview:

60LED WS2811 Addressable led strips, 60led/m, Control IC built outside the LED, 20x WS2811, 20pixel/m, 12V, 14.4w/m, 10mm white or black PCB, 15cm JST connector;

Data sheet:

Product:	60LED WS2811 Addressable led strips
Item No.:	WTP-2811X60-12V
LED:	WS2811-SMD5050-RGB, 60led/m
View angle:	120°
IC Chip:	WS2811
Input voltage:	12V
Power:	14.4w/m
Size:	5000x10x2.2(mm), 5m/roll

Features

1) Addressable DC12V WS2811 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Addressable, each IC control three SMD5050-RGB LEDs;
4) WS2811 has 3 Wires input and output: Data, GND and Power+;
6) 3 leds one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: (IP20/IP65/IP67/IP68)

SN	Model Number	LED Qty (led/m)	Pixel Qty (Pixel/m)	PCB Width (mm)	PCB Color	Operate Voltage	Power (w/m)	Packing (m/roll)
1	WTP-2811RGBx30	30led/m	30	10	W/B	12V	6.6	5
2	WTP-2811RGBx60	60led/m	60	10	W/B	12V	13.2	5
3	WTP-2811RGB1x90	90led/m	90	12	W/B	12V	21.6	5
4	WTP-2811RGBx90P	90led/m	90	15	W/B	12V	24.0	5
