HOT! WS2815 30/60/144leds/m Flexible Full Color Pixel Led Strip Light 12V addressable RGB Led Strip

HOT! WS2815 30/60/144leds/m Flexible Full Color Pixel Led Strip Light 12V addressable RGB Led Strip

Overview:

WS2815 Individual Addressable and breakpoint continue Flex led strips, 60led/m, Control IC built inside the LED, 60pixel/m, 12V, 13.2w/m, 10mm white or black PCB, 15cm JST connector;

Data sheet:

Product:	HOT! WS2815 30/60/144leds/m Flexible Full Color Pixel Led Strip Light 12V addressable RGB Led Strip
Item No.:	WTP-2815X30/60/144-12V
LED:	WS2815-SMD5050-RGB, 30led/m / 60led/m / 144led/m /
View angle:	120°
IC Chip:	WS2815
Input voltage:	12V
Power:	6.6w/m, 13.2w/m, 31.7w/m
Size:	5000x10x2.0(mm), 5m/roll

Features

1) Addressable DC12V WS2815 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;

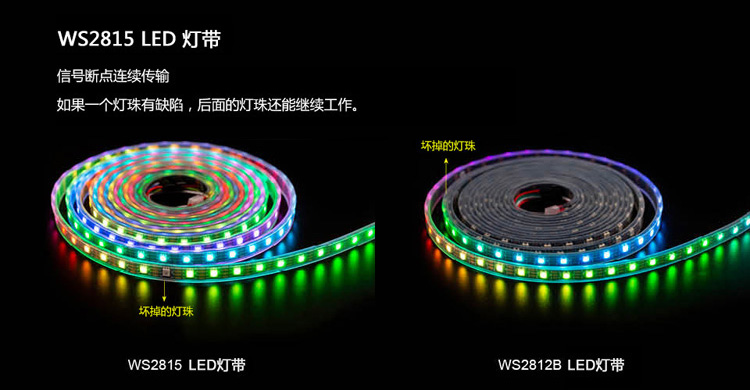

4) WS2815 has 4 Wires input and output: Datax2, GND and Power+; one LED died, the rest LEDs can keep working;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: (IP20/IP65/IP67/IP68)

SN	Model Number	LED Qty (led/m)	Pixel Qty (Pixel/m)	PCB Width (mm)	PCB Color	Operate Voltage	Power (w/m)	Packing (m/roll)
1	WTP-2815RGBx30	30led/m	30	10	W/B	12V	6.6	5
2	WTP-2815RGBx60	60led/m	60	10	W/B	12V	13.2	5
3	WTP-2815RGBx96	96led/m	96	10	W/B	12V	21.2	5
4	WTP-2815RGBx144	144led/m	144	12	W/B	12V	31.7	1
