WS2811 RGB LED Strip Light 60LEDs/m 10 Pixels – Professional Datasheet

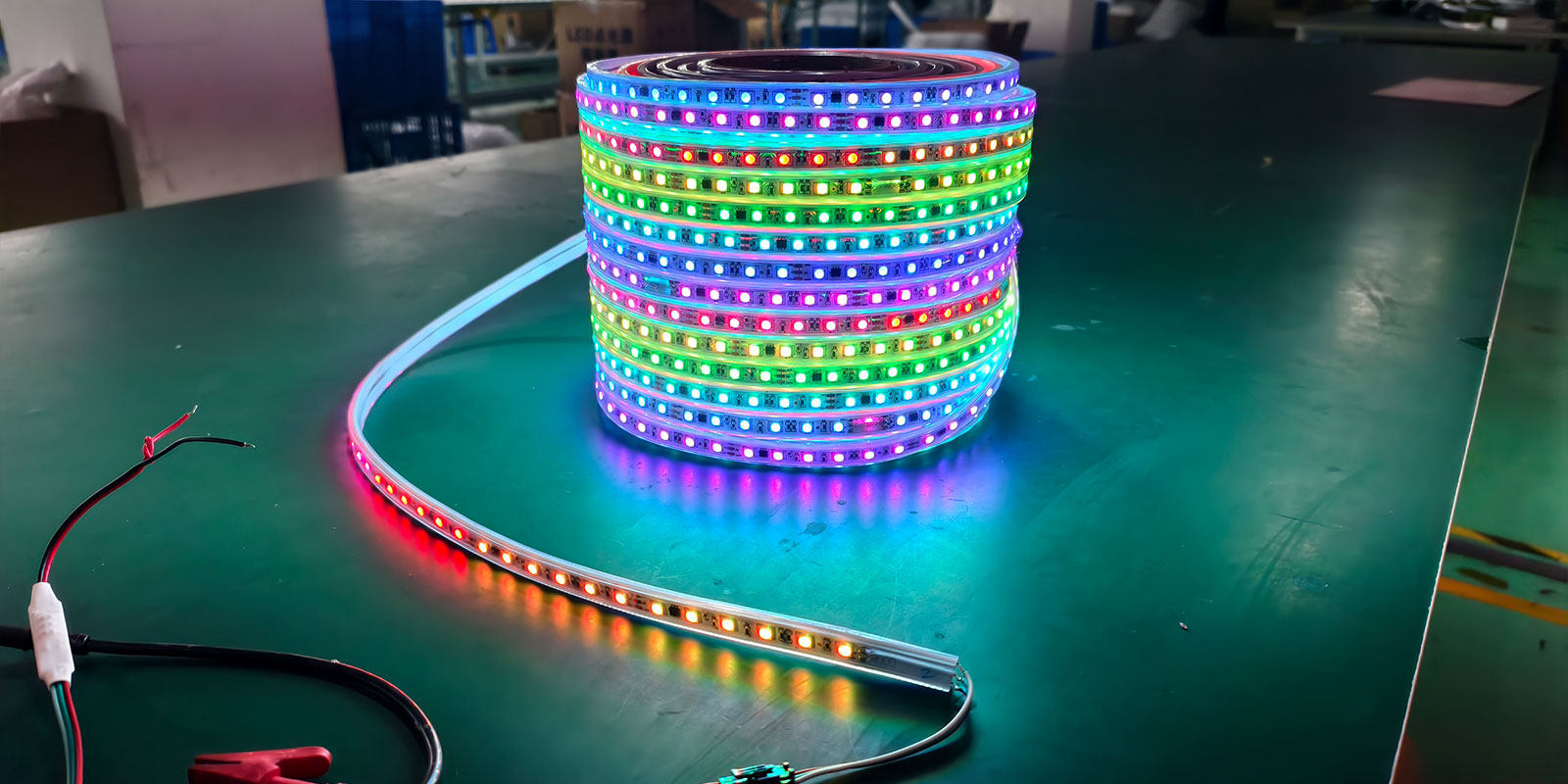

WS2811 RGB LED Strip Light – 60LEDs/m 10 Pixels Addressable Digital Strip
Professional-grade addressable RGB LED strip featuring WS2811 IC control, 60 SMD5050 LEDs per meter with 10 individually controllable pixels. Designed for dynamic lighting installations, architectural projects, and creative displays. IP67 waterproof rating ensures reliable outdoor performance.
SEO Information
SEO Title: WS2811 RGB LED Strip 60LEDs/m | IP67 Waterproof Addressable Digital Strip Light
Meta Description: High-quality WS2811 RGB LED strip with 60 LEDs/m, 10 addressable pixels, DC24V, IP67 waterproof.
Keywords: WS2811 LED strip, addressable RGB strip, 60LEDs meter, IP67 waterproof LED
60LEDs/m 10-Pixel WS2811 RGB Addressable LED Strip
WS2811 IC Control
60 LEDs/Meter
10 Pixels/Meter
IP67 Waterproof
DC24V Power
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 60LEDs 10-Pixel WS2811 RGB Addressable Flexible LED Strip |
| PCB Material | 10mm Width FPCB, White Color |
| LED Type | SMD5050-RGB |
| LED Chip | Epistar (Taiwan) or Sanan Chip |
| Control IC | WS2811 |
| Gray Scale | 256 Levels |
| Viewing Angle | 120 Degrees |
| Color Output | RGB Full Color (16.7 Million Colors) |
| Strip Dimensions (IP67) | Width: 14mm, Thickness: 5.6mm |
| Cutting Unit | Every 10cm (3 LEDs per segment) |
| Installation Method | Mounting Clips |
| Operating Temperature | -20°C to +45°C |
| Standard Packaging | 100 meters per reel, Spool packaging |
Technical Drawings

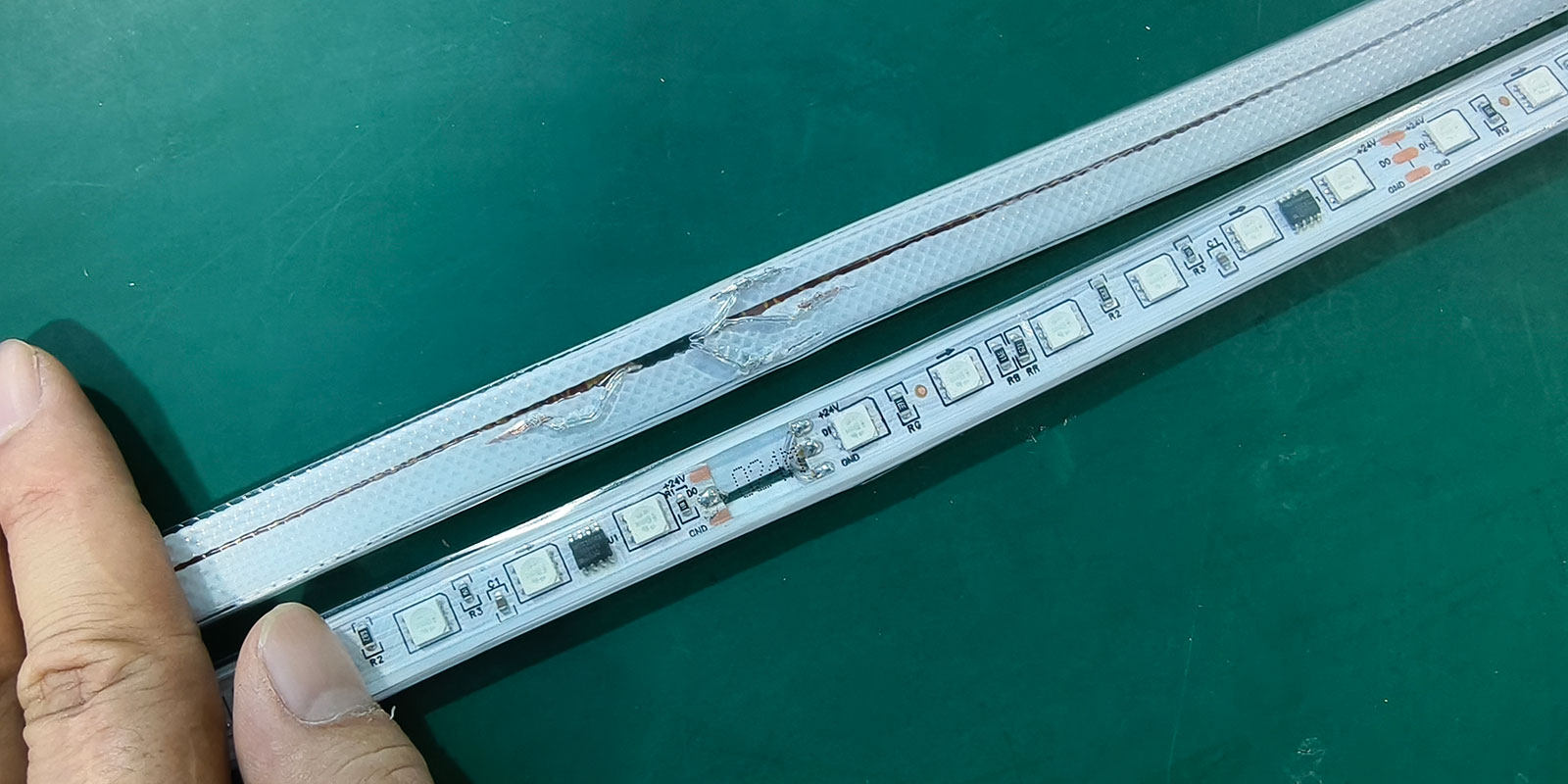

Structure & Dimensions Diagram

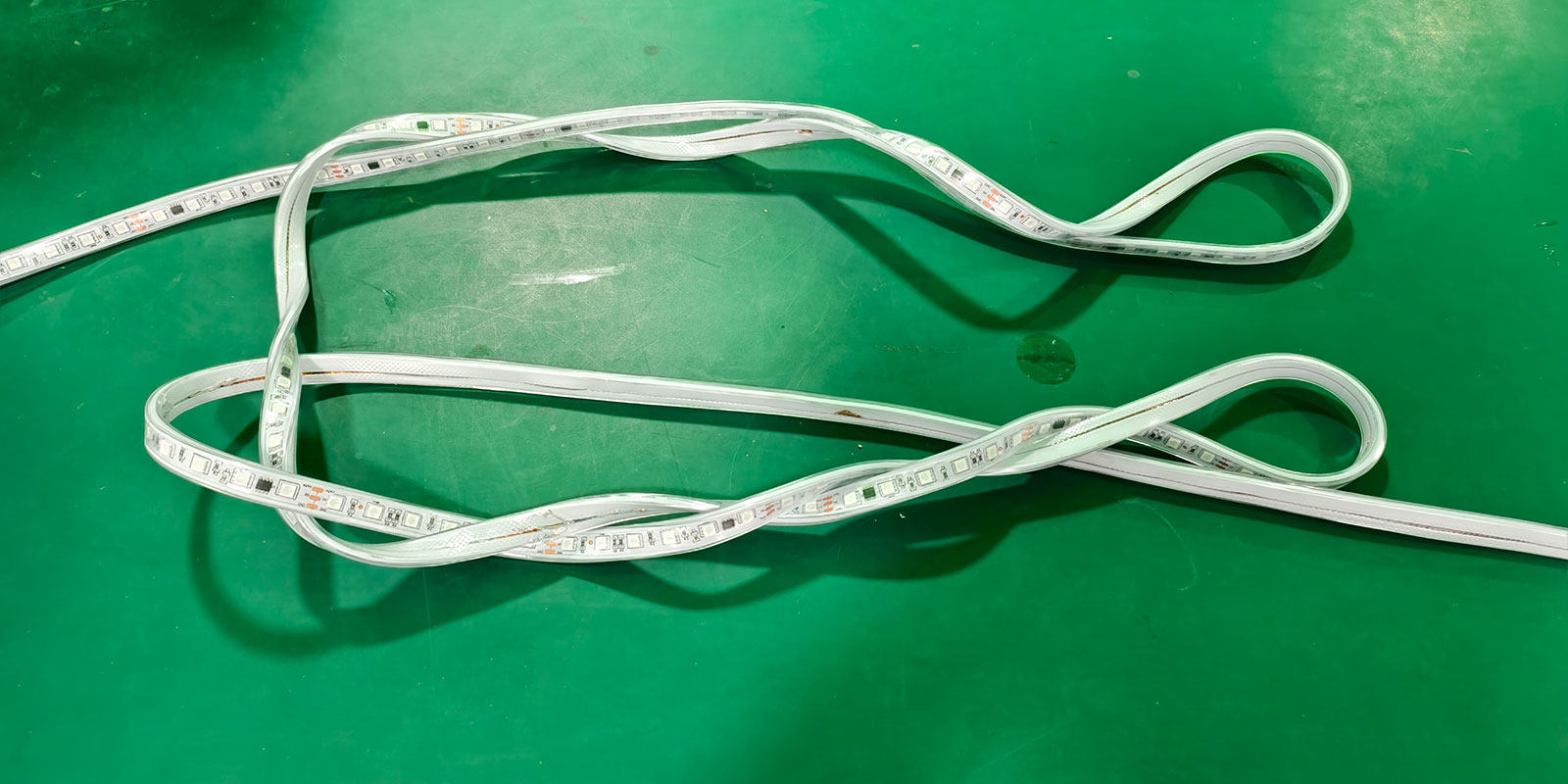

Wiring & Connection Diagram
Product Features
1. Addressable Control
WS2811 IC enables individual pixel control with 10 addressable segments per meter.
2. High LED Density
60 SMD5050 RGB LEDs per meter provide bright, uniform illumination.
3. IP67 Waterproof
Fully sealed silicone coating protects against water and dust.
4. Flexible Cutting
Cut every 10cm to customize length according to your requirements.
5. DC24V Operation
Higher voltage reduces voltage drop over long runs.
6. Wide Temperature Range
Operates reliably from -20°C to +45°C.
Application Showcase

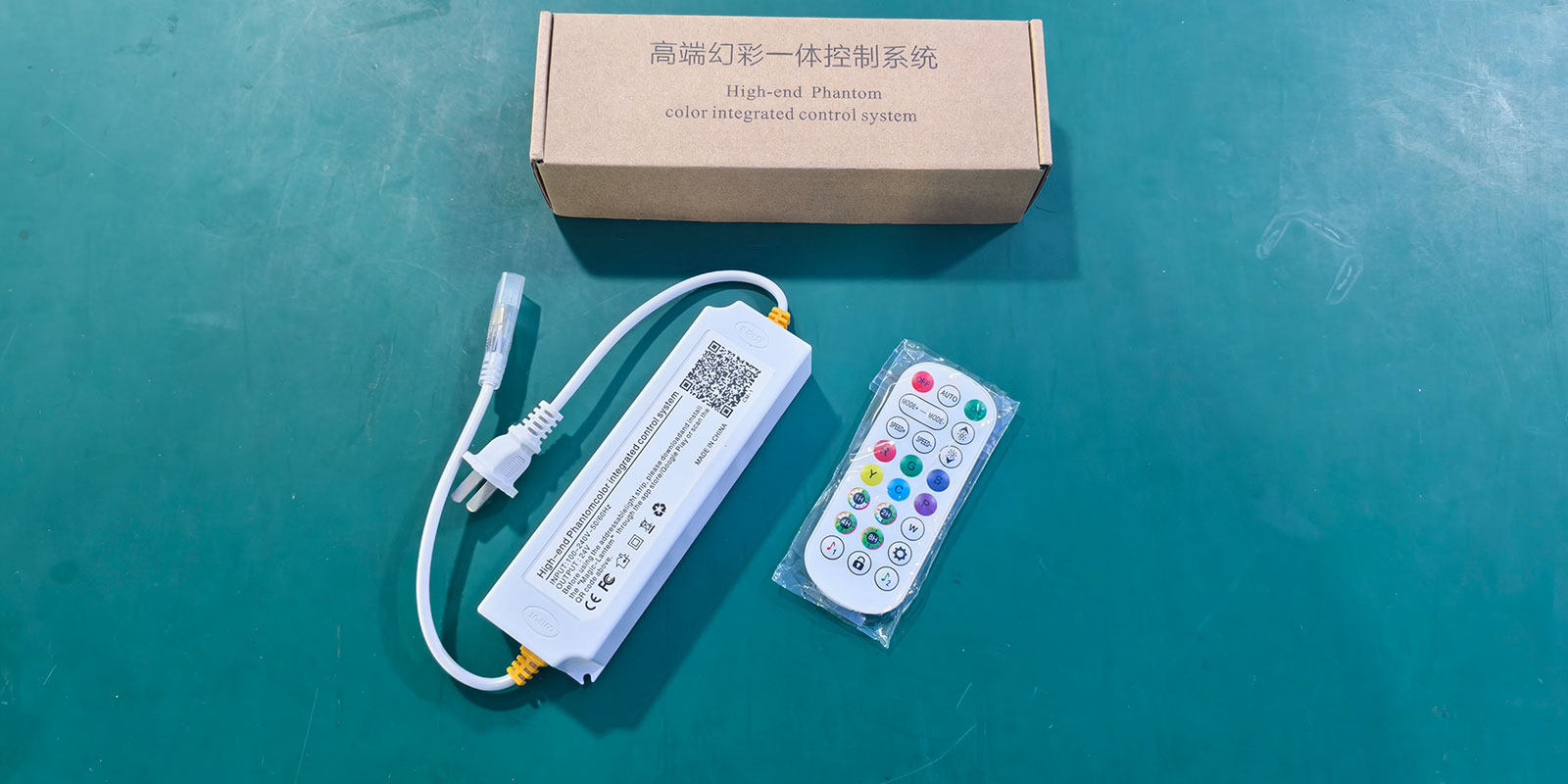

LED Controller

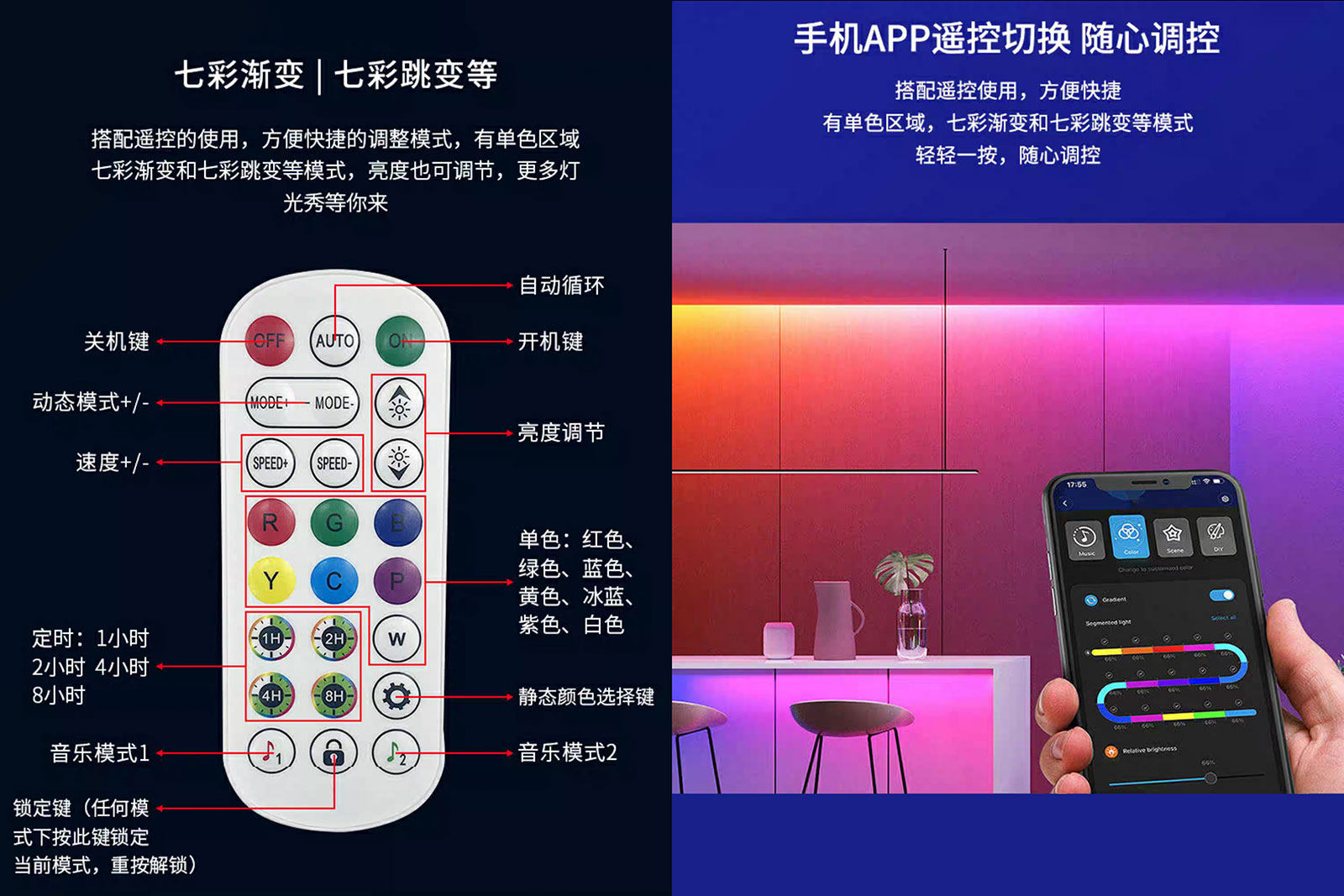

LED Controller & Remoter
User Diagram
