IP65 240led/m 12V SMD3528 Flex led strips

IP65 240led/m 12V SMD3528 Flex led strips



DC24V SMD3528 180 Leds/m 10mm PCB Flexible LED Strip



Data sheet:

  Product:   IP65 240led/m 12V SMD3528 Flex led strips
  Item No.:    WTP-3528-240-1012
  LED:    240x SMD3528
  View angle:   120°
  IC Chip:   None
  Input voltage:   12V
  Power:   19.2w/m
  Size:   5000x10x2.5(mm), 5m/roll

Features

> 100% Brand New.
> Super bright 3528SMD top LED, high intensity and reliability.
> Continuous length, packed with 5 meter.
> Cuttable every marked along the cutting marks, according to practical requirement.
> Long life span 50,000+ hours
> Flexible ribbon for curving around bends
> Low power consumption
> Completely smooth and even light spread, solving the uneven luminous problem
> Ultra-bright but running at low temperature
> High brightness, low power, long life, easy installation, the production of highly customizable,
> Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.

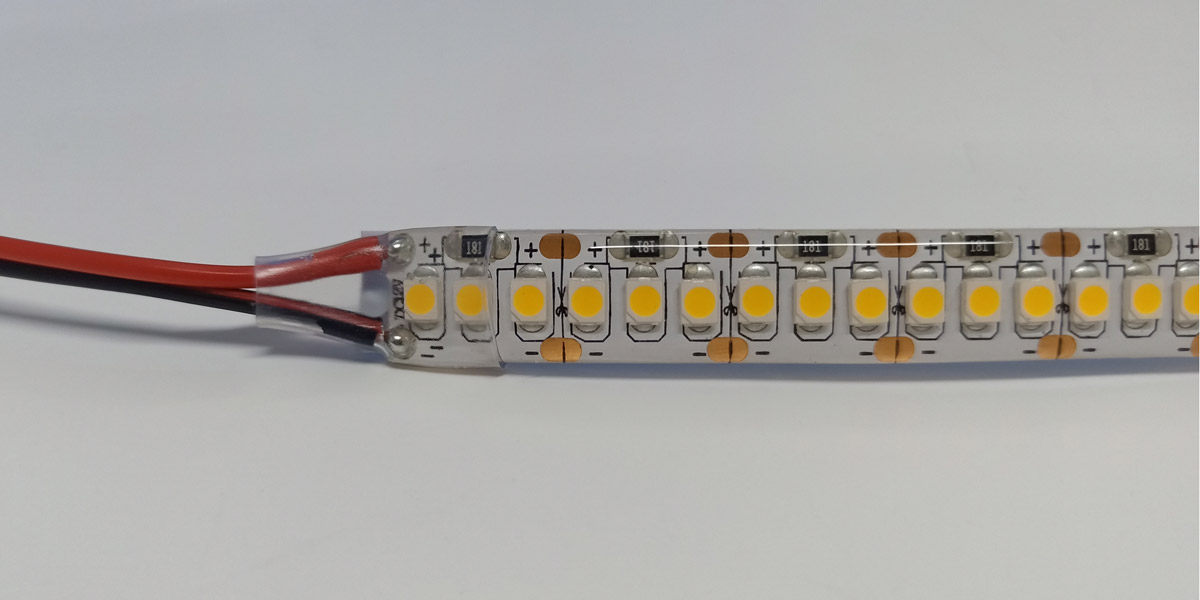

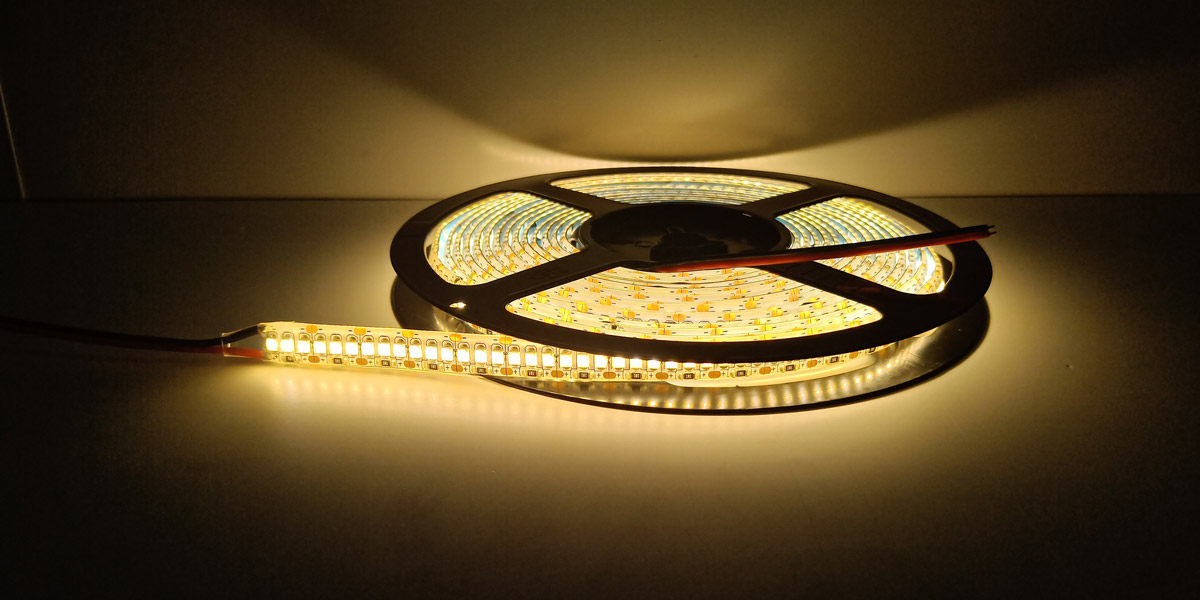

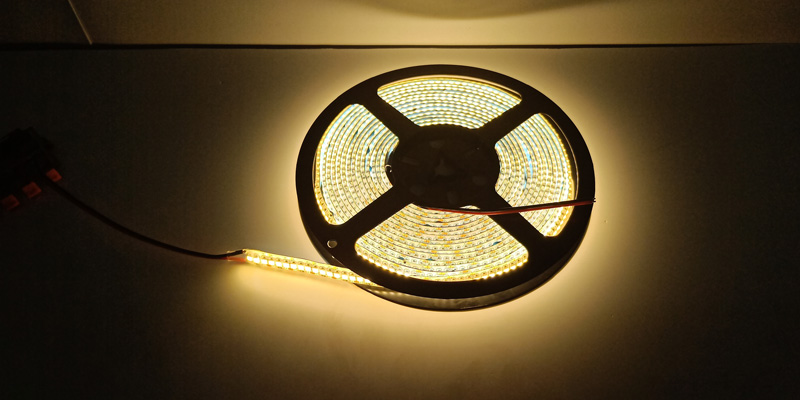

Photos show:(IP20 & IP65)

3528 led strips
3528 led strips
3528 led strips
3528 led strips
3528 led strips

 Order info: (Color: White or R/G/B/Y)

 SN  Model Number LED PCB Width Voltage Power Waterproof
1   WTP-3528×30-12V 30led/m 8mm 12V 2.4w/m IP20/IP65/IP67
2   WTP-3528×60-12V 60led/m 5/8/10mm 12V 4.8w/m IP20/IP65/IP67
3   WTP-3528×96-12V 96led/m 8mm 12V 7.6w/m IP20/IP65/IP67
4   WTP-3528×120 120led/m 5/8/10mm 12V/24V 9.6w/m IP20/IP65/IP67
5   WTP-3528×180-24V 180led/m 10mm 24V 14.4w/m IP20/IP65/IP67
6   WTP-3528×240-24V 240led/m 10mm 24V 14.4w/m IP20/IP65/IP67
7   WTP-3528×240-1524 240led/m 15mm(Double Row) 24V 19.2w/m IP20/IP65/IP67
8   WTP-3528x60RGB-12V 60led/m 10mm 12V 4.8w/m IP20/IP65/IP67
9   WTP-3528x90RGB-12V 90led/m 10mm 12V 7.2w/m IP20/IP65/IP67
