3mm Width 4mm Pitch 250led/m Individual Addressable APA102-2020-RGB Rigid LED Tape
3mm Width 4mm Pitch 250led/m Individual Addressable APA102-2020-RGB Rigid LED Tape:
Product: 3mm Width 4mm Pitch 250led/m Individual Addressable APA102-2020-RGB Rigid LED Tape
LED: APA102-RGB-2020, 125LED/pcs, 250LED/m
Power input: 5V, Max. 25w/m, (it is better to set the brightness below 50% to reduce the heat. )
PCB: 3mm Rigid PCB
Outlet: 4 wires at both ends ( 5V+, GND, Clock and Data )
Packing: 0.5m/pcs
Controller: SP105e, K-1000C, etc…
Diagram:

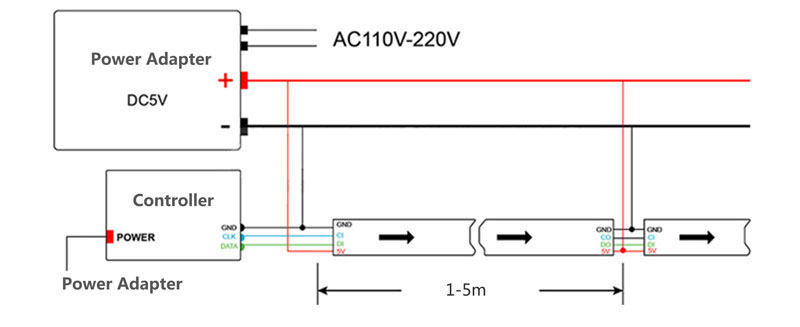

Wiring:

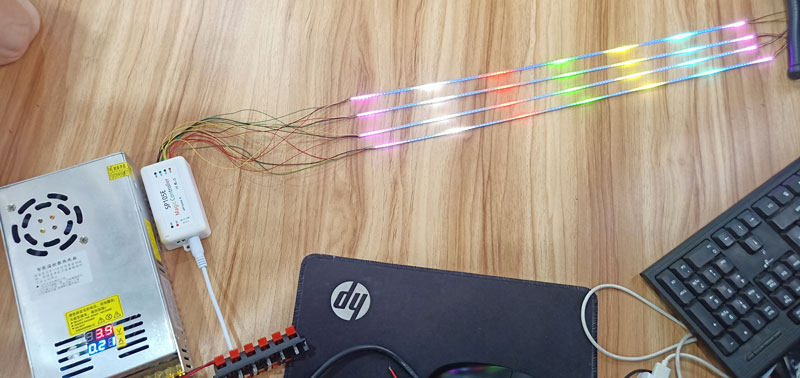

Photos:
About APA102-2020-RGB LED chips:
APA102-2020-256-8-V2 LED Chip Description:
1) APA102-2020 SMD LED is a new type of APA102 integrated led for three channels RGB color emitting.
2) It has very little size with 2.0mm*2.0*0.75mm, which has much more advantage for the smaller than 5050 led with 5.0*5.0mm. many new applications will be available for the tiny size.
3) APA102 2020 also use the APA102 as the driver IC to control the color dimming, Also high brightness too.
4) It can be widely used in apa102 2020 digital rgb led strips, apa102 2020 dotstar, apa102 led pixels, and full color led display.
5) Good thermal dissipation & optical uniformity
6) RoHS2.0 Compliant
7) Preconditioning: accelerate to JEDEC level 3
8) Serial data transmission signal by (DATA CLK) two line
9) ESD level 2kV(HBM)
