ADY Digital LED Strips
DC24V 5m 2835 120 Leds/m 5mm PCB Warm White LED Strip Flexible Tape
Data sheet:
| Product: | DC24V 5m 2835 120 Leds/m 5mm PCB Warm White LED Strip Flexible Tape |
| Item No.: | ADY-2835-120-0524 |
| LED: | 120 x SMD2835 |
| View angle: | 120° |
| Cut length: | 5mm FPCB, cut length is 50mm |
| Input voltage: | 24V |
| Power: | 14.4w/m |
| Size: | 5000x5x1.5(mm), 5m/roll |
Features
> 100% Brand New.
> Super bright 2835SMD top LED, high intensity and reliability.
> Continuous length, packed with 5 meter.
> Cuttable every marked along the cutting marks, according to practical requirement.
> Long life span 50,000+ hours
> Flexible ribbon for curving around bends
> Low power consumption
> Completely smooth and even light spread, solving the uneven luminous problem
> Ultra-bright but running at low temperature
> High brightness, low power, long life, easy installation, the production of highly customizable,
> Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.

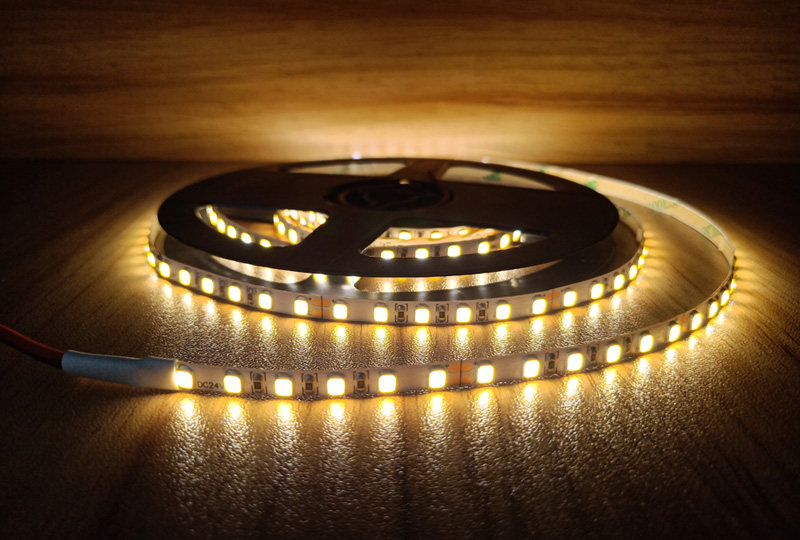

Photos show:
You are free to order the following SMD 2835 Flex led strips:
| SN | Model No. | Description | Marks |
| 1 | ADY-2835-30-08xx | SMD2835, 30LED/m, 12V/24V, 8mm white PCB | Normal |
| 2 | ADY-2835-60-08xx | SMD2835, 60LED/m, 12V/24V, 8/10mm white PCB | Normal |
| 2 | ADY-2835-S60-06xx | SMD2835, 60LED/m, 12V/24V, 6mm white PCB | S-type |
| 3 | ADY-2835-120-05xx | SMD2835, 120LED/m, 12V/24V, 5/10mm white PCB | Normal |
| 4 | ADY-2835-GW120-08xx | SMD2835, 120LED/m, 12V/24V, 8mm white PCB | Great-wall type |
| 5 | ADY-2835-240-10xx | SMD2835, 240LED/m, 12V/24V, 10mm white PCB | High density |
| 6 | ADY-2835-HL60-1024 | SMD2835, 60LED/m, 24V, 10mm white PCB, 10m/roll | Constant current |
| 7 | ADY-2835-HL60-1524 | SMD2835, 60LED/m, 24V, 15mm white PCB, 15m/roll | Constant current |
| 8 | ADY-2835-HL120-10324 | SMD2835, 120LED/m, 24V, 10mm white PCB, 10m/roll | Constant current |
| 9 | ADY-2835-HL70-1024 | SMD2835, 70LED/m, 24V, 10mm white PCB, 30m/roll | Constant current |
| 10 | ADY-2835-CTA120-1024 | SMD2835, 120LED/m, 24V, 10mm white PCB, 10m/roll | Color Adjustable |
1) Optional CRI: 80, 90, 95
2) Optional Color temperature: 1800K to 6500K
3) Optional Voltage: 5V/12V/24V/36V/48V
4) Optional Power: 0.03w/led to 0.20w/led
5) Optional Waterproof grade: IP20, IP65, IP67, IP68
6) Constant current: Powered at one side, keep same brightness from the begin to the end in a certain length.
Tags: 2835,3528,5050,High CRI LED Strip Lights
