ADY Digital LED Strips
New 6mm PCB 12V WS2815 Individual Addressable Digital LED Strips
Overview:
WS2815 Individual Addressable and breakpoint continue Flex led strips, 60led/m, Control IC built inside the LED, 60pixel/m, 12V, 12w/m, 6mm white or black PCB, 15cm JST connector;
Data sheet:
| Product: | WS2815 Flexible Pixel Led Strip Light |
| Item No.: | ADY-2815-60-1012 |
| LED: | WS2815-5050-RGB, 60led/m |
| View angle: | 120° |
| IC Chip: | WS2815 |
| Input voltage: | 12V DC |
| Power: | 12w/m |
| Size: | 5000x6x2.0(mm), 5m/roll |
Features: 12V | Individual Addressable | Breakpoint Continue | IC Buit-in |
1) Addressable DC12V WS2815 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) WS2815 has 4 Wires input and output: SPI Data x2, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;
Application:
> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.
Order Info: (IP20/IP65/IP67/IP68)
| SN | Model Number | LED Qty | Pixel Qty | PCB Width | Voltage | Power | Packing |
| 1 | ADY-2815-60-0612 | 60led/m | 60Pixel/m | 6mm | 12V | 12.0w/m | 5m/roll |
| 2 | ADY-2815-60-1012 | 60led/m | 60Pixel/m | 10mm | 12V | 12.0w/m | 5m/roll |
| 3 | ADY-2815-96-1012 | 96led/m | 96Pixel/m | 10mm | 12V | 19.2w/m | 5m/roll |
| 4 | ADY-2815-144F-1212 | 144led/m | 144Pixel/m | 12mm | 12V | 28.8w/m | 1m/roll |

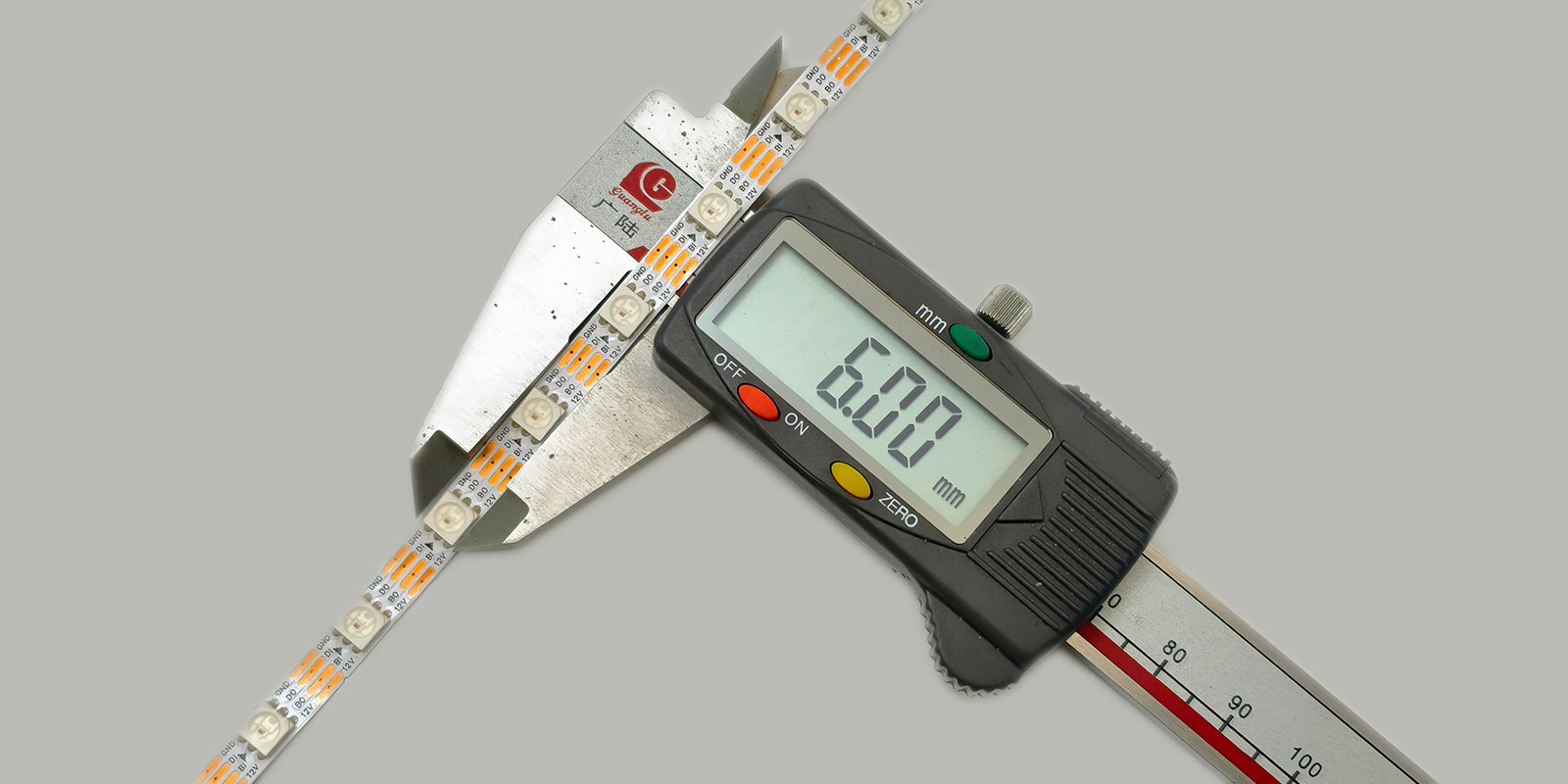

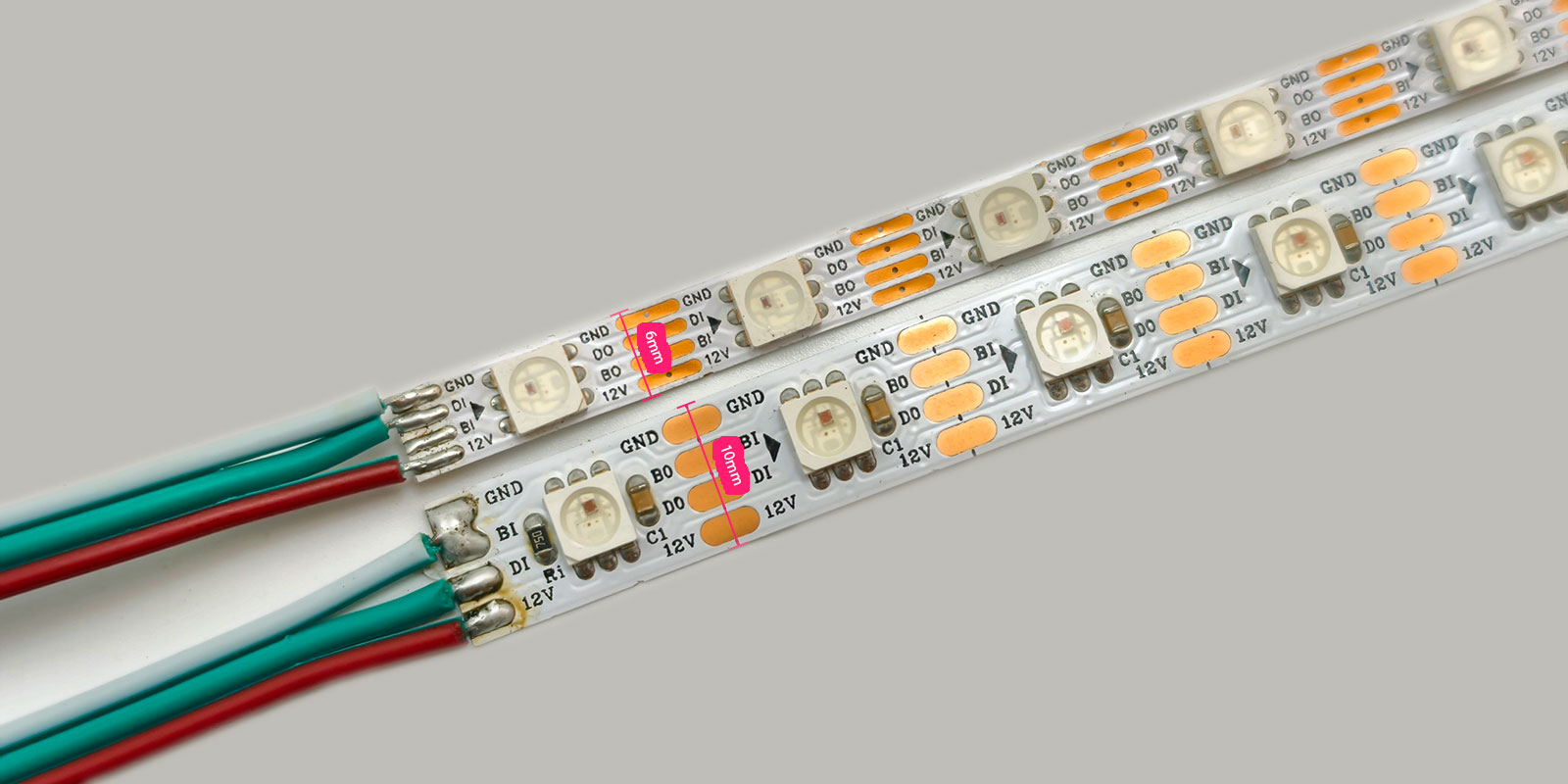

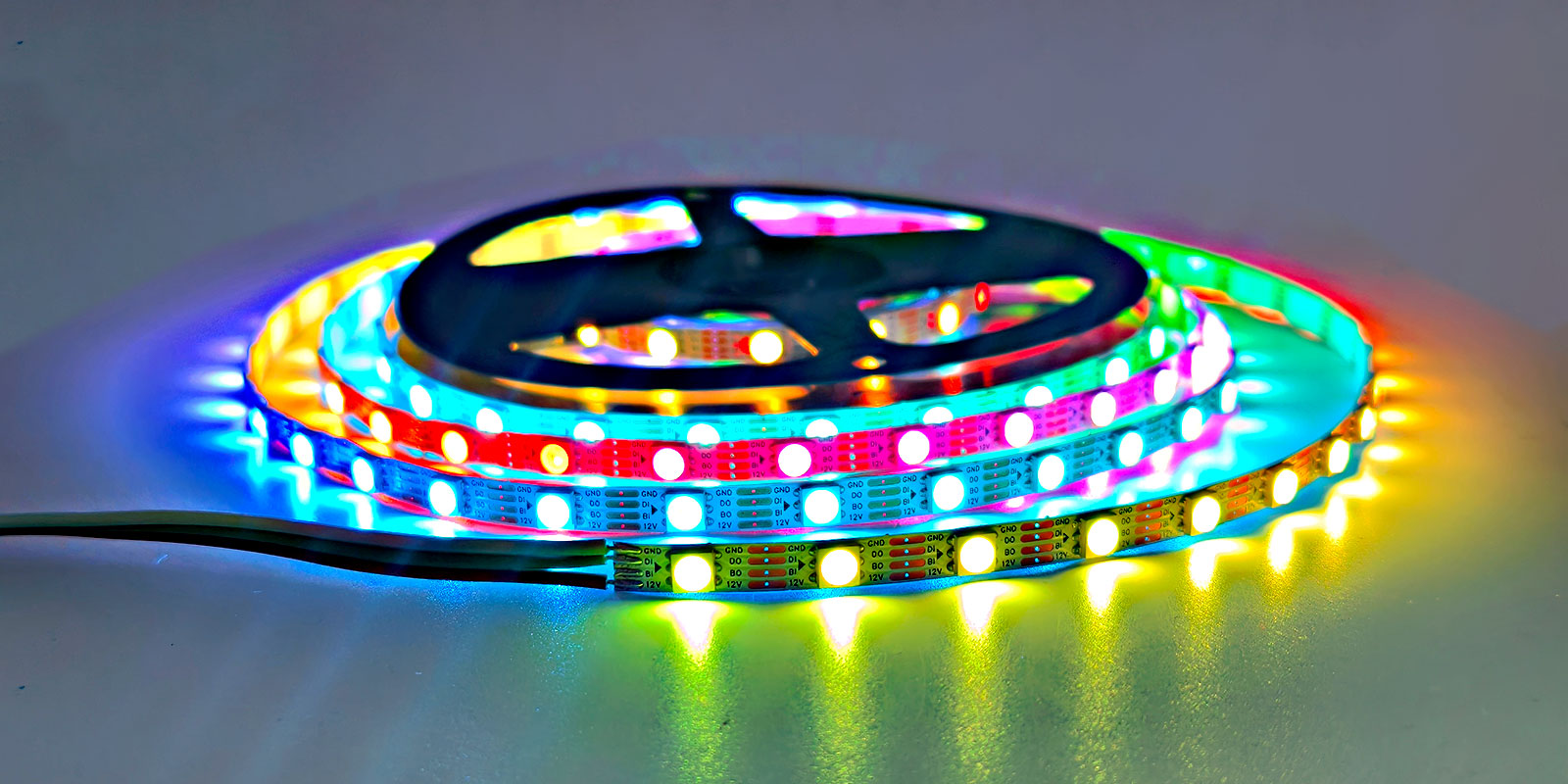

Photos show:

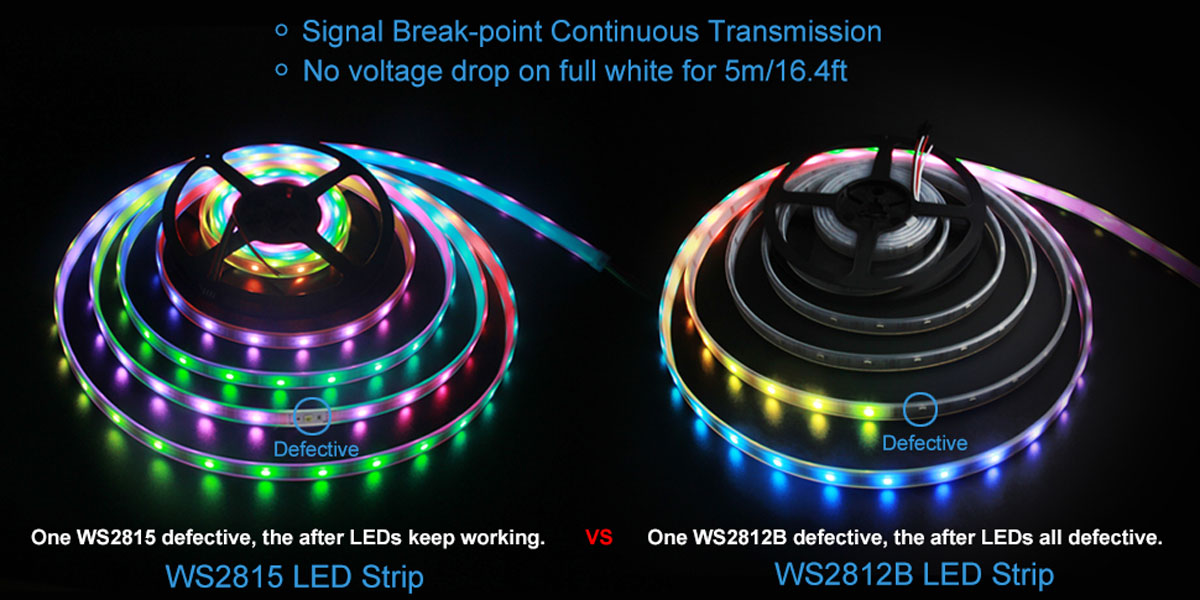

Tags: Addressable LED Strip,DC12V Addressable LED Strip,one led breaks the rest still work,WS2815
